How dbt connectivity works

TL;DR

Learn the three traffic paths between your dbt setup and Atlan - the dbt Cloud API pull, the storage-bucket read, and your own upload pipeline.

Your AI can read this via Docs MCPcurl -fsSL "https://docs.atlan.com/install-docs-mcp" | bashConnect

This page explains the three traffic paths between your dbt setup and Atlan and who owns each one. No prior cloud provider knowledge is required.

Pull, not push​

Atlan never receives anything from dbt automatically - it pulls. On a schedule (or when you click Run), an Atlan workflow reaches out and reads your dbt metadata. Where it reaches depends on your dbt flavor:

  • dbt Cloud is like a library with a front desk: Atlan walks up with a membership card (your API token) and asks for the records. If the library also checks IDs at the door (IP restrictions), Atlan's address must be on the guest list too - the card alone isn't enough.
  • dbt Core has no front desk. Instead, every time your pipeline runs dbt, it drops the paperwork (manifest.json and friends) into a filing cabinet (a cloud storage bucket), and Atlan is given a key to read - never write - that cabinet.

Three traffic paths​

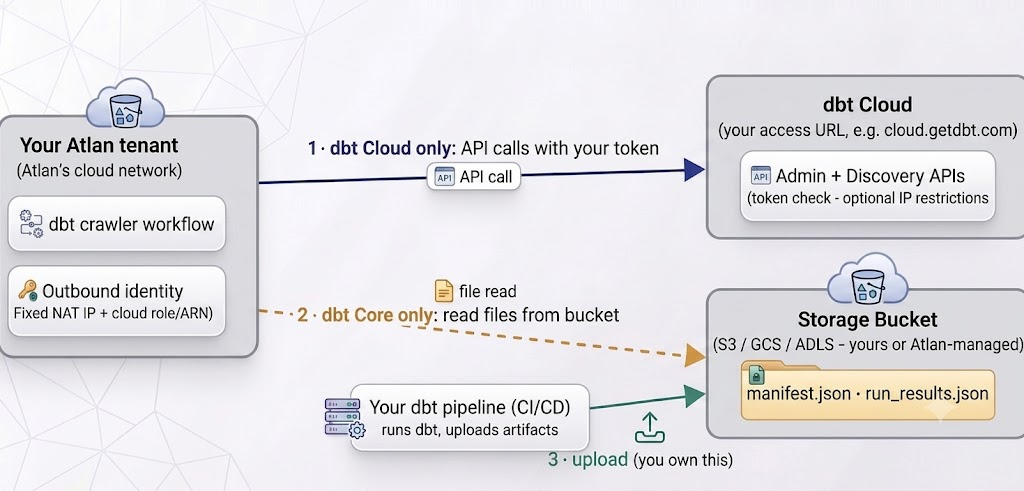

Diagram of the dbt connectivity paths from your Atlan tenant: for dbt Cloud, the crawler workflow calls the Admin and Discovery APIs at your access URL with your token (token check, optional IP restrictions); for dbt Core, Atlan's outbound identity (fixed NAT IP + cloud role/ARN) reads manifest.json and run_results.json from a storage bucket (S3 / GCS / ADLS - yours or Atlan-managed), which your own dbt pipeline (CI/CD) uploads the artifacts to

Atlan uses path 1 or path 2, never both for the same connection. Path 3 never touches Atlan - but if it breaks, Atlan sees stale or missing files.

  1. Atlan → dbt Cloud API (dbt Cloud connections). Encrypted HTTPS calls from your tenant's fixed outbound IP to your dbt Cloud access URL. Two things can block it: a token without the right permissions, and dbt Cloud's optional IP-restrictions feature rejecting Atlan's IP.
  2. Atlan → storage bucket (dbt Core connections). Atlan authenticates with your cloud provider (an IAM role on AWS, a service account key on GCP, a service principal on Azure) and reads the dbt output files. Almost every failure here is a permissions or bucket-policy issue.
  3. Your pipeline → the bucket (dbt Core only). Uploading fresh manifest.json files after each dbt run is your job (your CI/CD does it). If uploads stop, the Atlan connection still "works" - it just crawls old metadata.

Glossary​

For definitions of every term used in these guides - API token, service account token vs PAT, access URL, IP restrictions, NAT IP, bucket/prefix, dbt artifacts, IAM role/ARN, trust policy, external ID, KMS key, preflight checks, connection admin - see the Network connectivity glossary.
